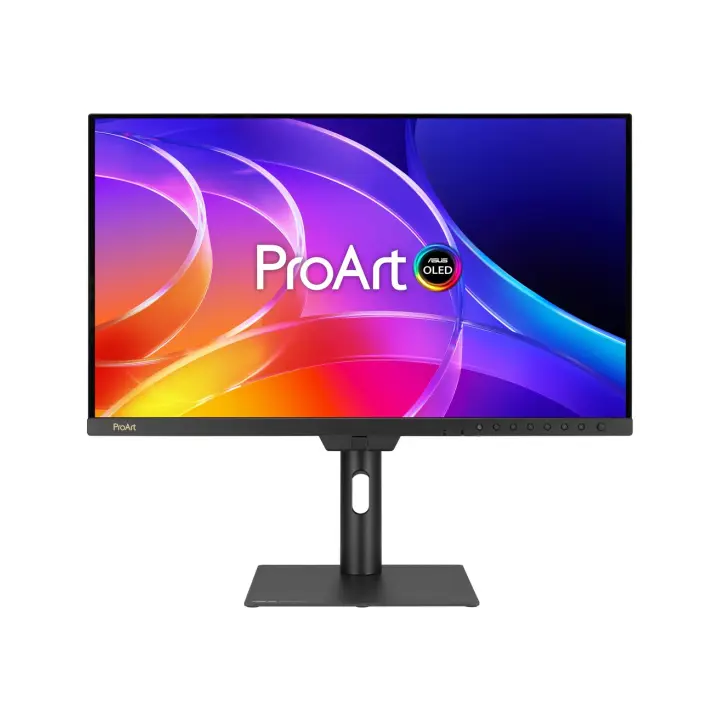

Apple Studio Display XDR vs Asus ProArt PA27USD
What Studio Display XDR does better (3) and where ProArt PA27USD wins (3) — every spec side by side.
vs
9.8Screen9.1
9.2Connectivity8.7
Dimensions
Size comparison
Studio Display XDRProArt PA27USD
| Studio Display XDR | ProArt PA27USD | Difference | |
|---|---|---|---|
| Height | 362 mm | 584.9 mm | −222.9 mm |
| Width | 623 mm | 610.3 mm | +12.7 mm |
| Depth | 33 mm | 239.7 mm | −206.7 mm |
| Weight | 6.3 kg | 5.4 kg | +0.9 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Studio Display XDR better than ProArt PA27USD?
- Brightness (typical)1,000 nits vs 250 nits4×
- Pixel density218 ppi vs 166 ppi+31%
- Peak brightness (HDR)2,000 nits vs 1,000 nits2×
Why is ProArt PA27USD better than Studio Display XDR?
- Panel typeMini-LED (IPS) vs OLED
- Refresh rate120 Hz vs 240 Hz2×
- Weight6.3 kg vs 5.36 kg+18%
Specifications
Side by side
| Display | ||
| Screen size | 27″ | 26.5″ |
| Resolution | 5120 × 2880 | 3840 × 2160 |
| Resolution class | 5K | 4K UHD |
| Pixel density | 218 ppi | 166 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | Mini-LED (IPS) | OLED |
| Refresh rate | 120 Hz | 240 Hz |
| Brightness (typical) | 1,000 nits | 250 nits |
| Peak brightness (HDR) | 2,000 nits | 1,000 nits |
| Contrast ratio (static) | — | 1,500,000:1 |
| Response time | — | 0.1 ms |
| Anti-glare / matte screen | Yes | Yes |
| Colour | ||
| sRGB coverage | — | 100% |
| DCI-P3 coverage | — | 99% |
| Colour accuracy (ΔE, claimed) | — | ΔE 1 |
| Colour depth | 10 bit | 10 bit |
| Hardware calibration | — | Yes |
| HDR | — | HDR10 |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| USB-C charging (Power Delivery) | 96 W | 96 W |
| Thunderbolt | Yes | Yes |
| KVM switch | — | Yes |
| HDMI inputs | — | 2 |
| DisplayPort inputs | — | 1 |
| USB hub | Yes | Yes |
| Built-in speakers | Yes | Yes |
| Built-in webcam | Yes | — |
| Design & ergonomics | ||
| Height adjustment | — | 130 mm |
| Pivot (portrait rotation) | — | Yes |
| Swivel | — | Yes |
| VESA mount | 100 × 100 mm | 100 × 100 mm |
| Weight | 6.3 kg | 5.36 kg |
| Width | 623 mm | 610 mm |
| Height | 362 mm | 585 mm |
| Depth | 33 mm | 240 mm |
| Product line | — | ASUS ProArt |
