- Kamvas Studio 16 vs Cintiq Pro 17

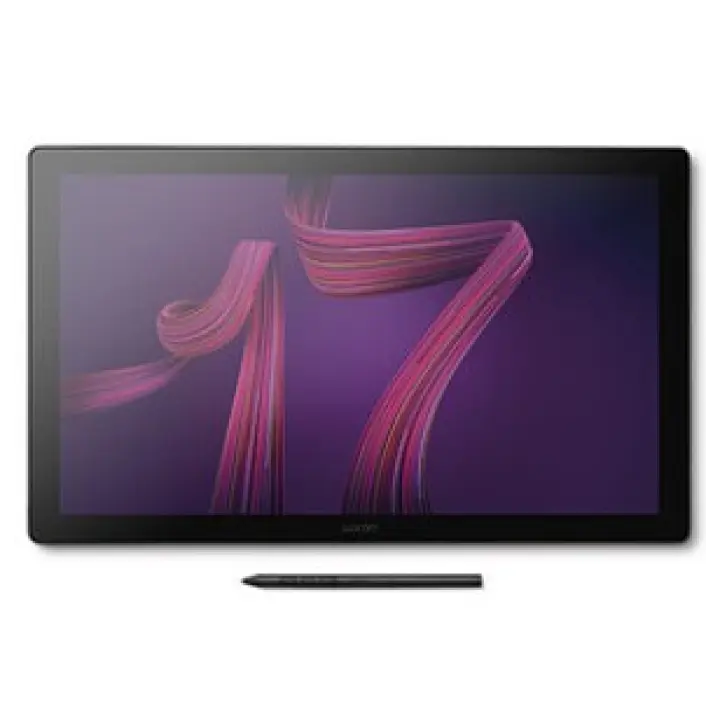

Huion Kamvas Studio 16 vs Wacom Cintiq Pro 17
What Kamvas Studio 16 does better (3) and where Cintiq Pro 17 wins (4) — every spec side by side.
vs
8.6Screen9.6
8.9Pen & controls6.8
9.7Connectivity3.5
5.8Design & ergonomics5.2
Dimensions
Size comparison
Kamvas Studio 16Cintiq Pro 17
| Kamvas Studio 16 | Cintiq Pro 17 | Difference | |
|---|---|---|---|
| Height | 234 mm | 253 mm | −19 mm |
| Width | 384 mm | 424 mm | −40 mm |
| Depth | 11.9 mm | 21 mm | −9.1 mm |
| Weight | 1.7 kg | 2.2 kg | −0.5 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas Studio 16 better than Cintiq Pro 17?
- USB-C video input (one cable)Yes · Cintiq Pro 17: No
- Wireless connectionYes · Cintiq Pro 17: No
- Weight1.7 kg vs 2.2 kg+29%
Why is Cintiq Pro 17 better than Kamvas Studio 16?
- Pixel density186 ppi vs 255 ppi+37%
- Response time14 ms vs 8 ms+75%
- Active area (surface)688 cm² vs 821 cm²+19%
- Screen size15.8″ vs 17.3″+9%
Specifications
Side by side
| Display | ||
| Screen size | 15.8″ | 17.3″ |
| Resolution | 2560 × 1440 | 3840 × 2160 |
| Resolution class | QHD / 2.5K | 4K UHD |
| Pixel density | 186 ppi | 255 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | — |
| Refresh rate | 60 Hz | — |
| Brightness (typical) | 400 nits | — |
| Contrast ratio (static) | 1,200:1 | — |
| Response time | 14 ms | 8 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | — |
| Colour | ||
| Colour depth | 8 bit | — |
| Pen & controls | ||
| Pressure levels | 8,192 | 8,192 |
| Tilt recognition | ±60° | ±60° |
| Active area | 349.6 × 196.7 mm | 382 × 215 mm |
| Active area width | 350 mm | 382 mm |
| Active area height | 197 mm | 215 mm |
| Active area (surface) | 688 cm² | 821 cm² |
| Pen resolution | 5,080 lpi | — |
| Report rate | 300 RPS | — |
| Pen accuracy (centre) | ±0.3 mm | — |
| Battery-free pen | Yes | Yes |
| Pen | PW550S Slim | — |
| Express keys | — | 8 |
| Multi-touch | Yes | Yes |
| Standalone (built-in computer) | Yes | — |
| Connectivity | ||
| USB-C video input (one cable) | Yes | No |
| HDMI inputs | — | 1 |
| DisplayPort inputs | — | 1 |
| Wireless connection | Yes | No |
| Bluetooth | Yes | — |
| Built-in speakers | Yes | — |
| Built-in webcam | Yes | — |
| Compatibility | Windows | — |
| Design & ergonomics | ||
| Stand | Adjustable stand ST200 | — |
| Weight | 1.7 kg | 2.2 kg |
| Width | 384 mm | 424 mm |
| Height | 234 mm | 253 mm |
| Depth | 12 mm | 21 mm |
| Product line | Huion Kamvas | Wacom Cintiq Pro |
