- ProArt PA27UCX vs ColorEdge CS2740

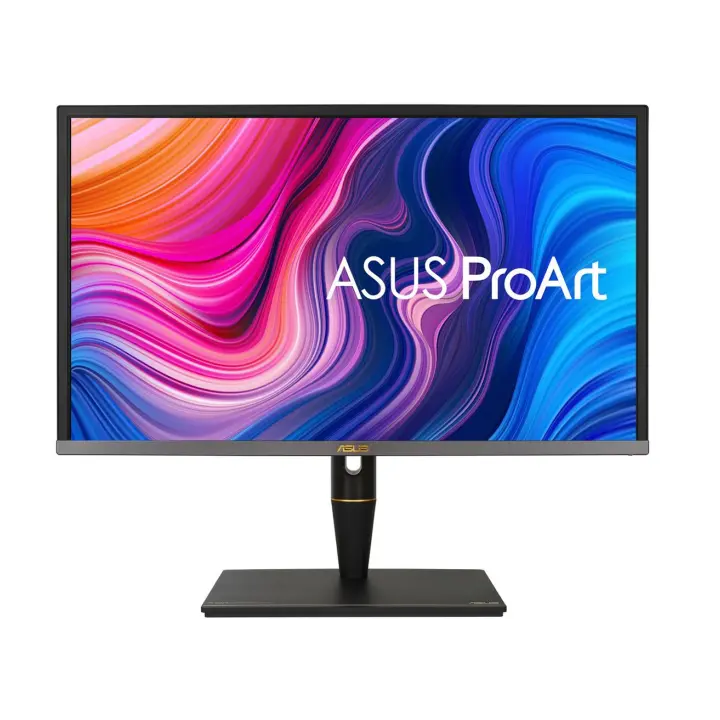

Asus ProArt PA27UCX vs EIZO ColorEdge CS2740
What ProArt PA27UCX does better (3) and where ColorEdge CS2740 wins (4) — every spec side by side.
vs
6.2Screen5.9
7.3Colour accuracy7.9
6.2Connectivity2.3
3.3Design & ergonomics6.9
Dimensions
Size comparison
ProArt PA27UCXColorEdge CS2740
| ProArt PA27UCX | ColorEdge CS2740 | Difference | |
|---|---|---|---|
| Height | 544.5 mm | 404.1 mm | +140.4 mm |
| Width | 625.2 mm | 638 mm | −12.8 mm |
| Depth | 228.8 mm | 265 mm | −36.2 mm |
| Weight | 11.5 kg | 10.3 kg | +1.2 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is ProArt PA27UCX better than ColorEdge CS2740?
- USB-C charging (Power Delivery)90 W vs 60 W+50%
- Response time4 ms vs 10 ms2.5×
- HDMI inputs2 vs 12×
Why is ColorEdge CS2740 better than ProArt PA27UCX?
- Brightness (typical)300 nits vs 350 nits+17%
- DCI-P3 coverage97% vs 99%+2%
- Height adjustment120 mm vs 155 mm+29%
- Weight11.5 kg vs 10.3 kg+12%
Specifications
Side by side
| Display | ||
| Screen size | 27″ | 26.9″ |
| Resolution | 3840 × 2160 | 3840 × 2160 |
| Resolution class | 4K UHD | 4K UHD |
| Pixel density | 163 ppi | 164 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | IPS |
| Refresh rate | 60 Hz | 60 Hz |
| Brightness (typical) | 300 nits | 350 nits |
| Peak brightness (HDR) | 1,000 nits | — |
| Contrast ratio (static) | 1,000:1 | 1,000:1 |
| Response time | 4 ms | 10 ms |
| Anti-glare / matte screen | Yes | Yes |
| Colour | ||
| sRGB coverage | 100% | 100% |
| Adobe RGB coverage | 99.5% | 99% |
| DCI-P3 coverage | 97% | 99% |
| Rec. 2020 coverage | 83% | — |
| Colour accuracy (ΔE, claimed) | ΔE 1 | — |
| Colour depth | 10 bit | 10 bit |
| Hardware calibration | Yes | — |
| HDR | HDR10 | — |
| Uniformity compensation | — | Yes |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| USB-C charging (Power Delivery) | 90 W | 60 W |
| HDMI inputs | 2 | 1 |
| DisplayPort inputs | 1 | 1 |
| USB hub | Yes | Yes |
| Built-in speakers | Yes | No |
| Design & ergonomics | ||
| Height adjustment | 120 mm | 155 mm |
| Pivot (portrait rotation) | Yes | Yes |
| Swivel | Yes | Yes |
| VESA mount | 100 × 100 mm | 100 × 100 mm |
| Weight | 11.5 kg | 10.3 kg |
| Width | 625 mm | 638 mm |
| Height | 544 mm | 404 mm |
| Depth | 229 mm | 265 mm |
| Product line | ASUS ProArt | EIZO ColorEdge |
