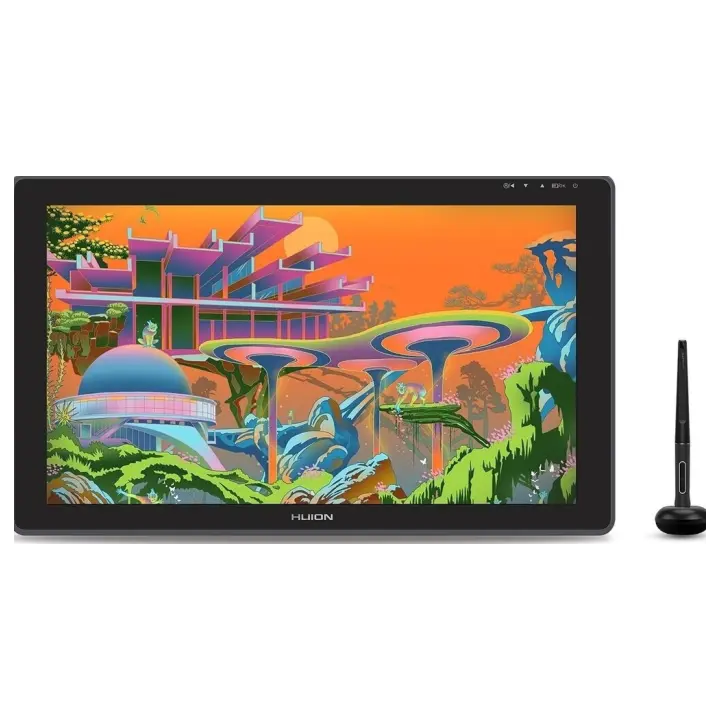

Huion Kamvas 22 vs XP-Pen Artist Pro 14 (Gen 2)
What Kamvas 22 does better (5) and where Artist Pro 14 (Gen 2) wins (4) — every spec side by side.
vs
2.3Screen4.7
5.8Pen & controls3.9
7.9Connectivity7.9
Dimensions
Size comparison
Kamvas 22Artist Pro 14 (Gen 2)
| Kamvas 22 | Artist Pro 14 (Gen 2) | Difference | |
|---|---|---|---|
| Height | 323 mm | 268.6 mm | +54.4 mm |
| Width | 546 mm | 359.3 mm | +186.7 mm |
| Depth | 19 mm | 19.3 mm | −0.3 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas 22 better than Artist Pro 14 (Gen 2)?
- Active area (surface)1,278 cm² vs 558 cm²2.3×
- Report rate220 RPS vs 200 RPS+10%
- Response time14 ms vs 25 ms+79%
- Screen size21.5″ vs 13.9″+55%
- Pen accuracy (centre)±0.3 mm vs ±0.4 mm+33%
Why is Artist Pro 14 (Gen 2) better than Kamvas 22?
- Pixel density102 ppi vs 163 ppi+60%
- Pressure levels8,192 vs 16,3842×
- Fully laminated screenNo · Kamvas 22: Yes
- Brightness (typical)220 nits vs 250 nits+14%
Specifications
Side by side
| Display | ||
| Screen size | 21.5″ | 13.9″ |
| Resolution | 1920 × 1080 | 1920 × 1200 |
| Resolution class | Full HD | Full HD |
| Pixel density | 102 ppi | 163 ppi |
| Aspect ratio | 16:9 | 16:10 |
| Panel type | IPS | — |
| Brightness (typical) | 220 nits | 250 nits |
| Contrast ratio (static) | 1,000:1 | 1,000:1 |
| Response time | 14 ms | 25 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | No | Yes |
| Colour | ||
| sRGB coverage | — | 99% |
| Adobe RGB coverage | — | 85% |
| Colour depth | 8 bit | — |
| Pen & controls | ||
| Pressure levels | 8,192 | 16,384 |
| Tilt recognition | ±60° | ±60° |
| Active area | 476.6 × 268.1 mm | 298.9 × 186.8 mm |
| Active area width | 477 mm | 299 mm |
| Active area height | 268 mm | 187 mm |
| Active area (surface) | 1,278 cm² | 558 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 220 RPS | 200 RPS |
| Pen accuracy (centre) | ±0.3 mm | ±0.4 mm |
| Battery-free pen | Yes | — |
| Pen with eraser | — | Yes |
| Pen | PW517 | X3 Pro Smart Chip Stylus |
| Multi-touch | No | No |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux, Android | Windows, macOS, Linux, Android, ChromeOS |
| Design & ergonomics | ||
| Stand | Adjustable Stand 20°~80° | — |
| Weight | 3.9 kg | — |
| Width | 546 mm | 359 mm |
| Height | 323 mm | 269 mm |
| Depth | 19 mm | 19 mm |
| Product line | Huion Kamvas | XP-Pen Artist |
