- Kamvas 24 Plus vs Artist 22R Pro

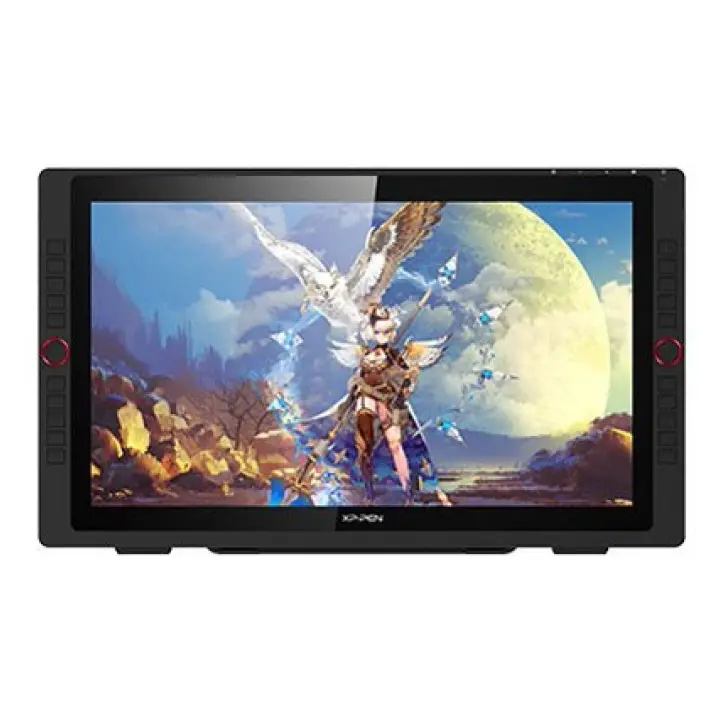

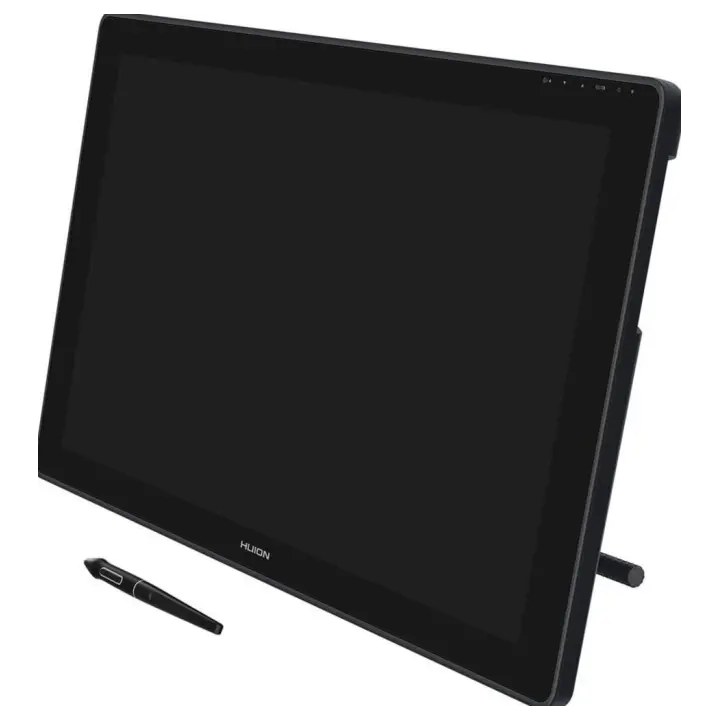

Huion Kamvas 24 Plus vs XP-Pen Artist 22R Pro
What Kamvas 24 Plus does better (6) and where Artist 22R Pro wins (1) — every spec side by side.
vs
4.8Screen2.7
6.2Pen & controls7.7
7.9Connectivity2.6
Dimensions
Size comparison
Kamvas 24 PlusArtist 22R Pro
| Kamvas 24 Plus | Artist 22R Pro | Difference | |
|---|---|---|---|
| Height | 358 mm | 334.8 mm | +23.2 mm |
| Width | 604.2 mm | 570 mm | +34.2 mm |
| Depth | 21 mm | 44.8 mm | −23.8 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas 24 Plus better than Artist 22R Pro?
- USB-C video input (one cable)Yes · Artist 22R Pro: No
- Pixel density123 ppi vs 102 ppi+21%
- Report rate220 RPS vs 200 RPS+10%
- Active area (surface)1,562 cm² vs 1,275 cm²+23%
- Contrast ratio (static)1,200:1 vs 1,000:1+20%
- Screen size23.8″ vs 21.5″+11%
Why is Artist 22R Pro better than Kamvas 24 Plus?
- Pen accuracy (centre)±0.3 mm vs ±0.01 mm30×
Specifications
Side by side
| Display | ||
| Screen size | 23.8″ | 21.5″ |
| Resolution | 2560 × 1440 | 1920 × 1080 |
| Resolution class | QHD / 2.5K | Full HD |
| Pixel density | 123 ppi | 102 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | — |
| Brightness (typical) | 220 nits | — |
| Contrast ratio (static) | 1,200:1 | 1,000:1 |
| Response time | 14 ms | 14 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | — |
| Colour | ||
| Colour depth | 8 bit | — |
| Pen & controls | ||
| Pressure levels | 8,192 | 8,192 |
| Tilt recognition | ±60° | ±60° |
| Active area | 526.9 × 296.4 mm | 476.1 × 267.8 mm |
| Active area width | 527 mm | 476 mm |
| Active area height | 296 mm | 268 mm |
| Active area (surface) | 1,562 cm² | 1,275 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 220 RPS | 200 RPS |
| Pen accuracy (centre) | ±0.3 mm | ±0.01 mm |
| Battery-free pen | Yes | Yes |
| Pen | PW517 | Battery-free Stylus |
| Express keys | — | 20 |
| Dials, wheels & touch rings | — | 2 |
| Multi-touch | No | No |
| Connectivity | ||
| USB-C video input (one cable) | Yes | No |
| HDMI inputs | — | 1 |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux, Android | Windows, macOS, Linux, ChromeOS |
| Design & ergonomics | ||
| VESA mount | — | 100 × 100 mm |
| Stand | Adjustable Stand 20°~80° | — |
| Weight | 5.6 kg | — |
| Width | 604 mm | 570 mm |
| Height | 358 mm | 335 mm |
| Depth | 21 mm | 45 mm |
| Product line | Huion Kamvas | — |
