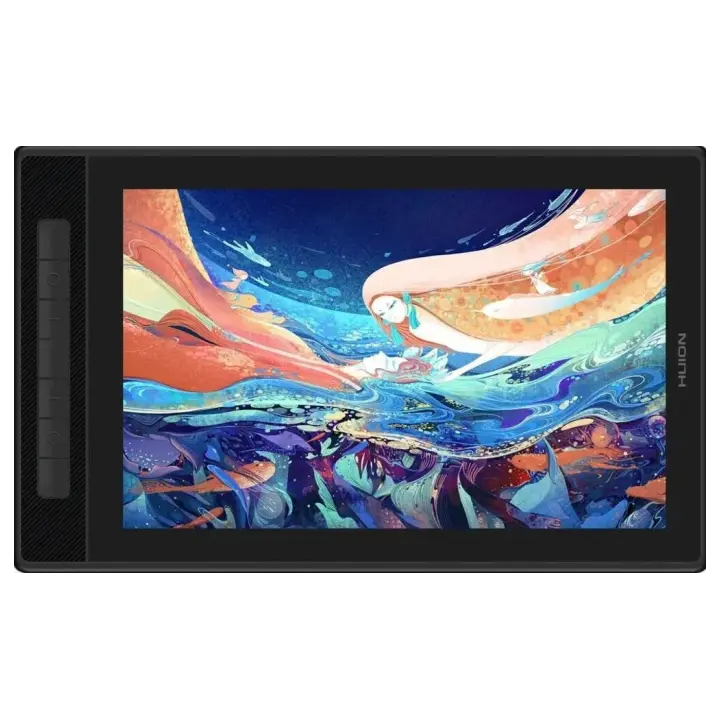

Huion Kamvas Pro 13 vs Huion Kamvas Pro 20
What Kamvas Pro 13 does better (4) and where Kamvas Pro 20 wins (3) — every spec side by side.
vs
4.0Screen2.6
2.4Pen & controls4.4
7.9Connectivity3.5
8.2Design & ergonomics4.9
Dimensions
Size comparison
Kamvas Pro 13Kamvas Pro 20
| Kamvas Pro 13 | Kamvas Pro 20 | Difference | |
|---|---|---|---|
| Height | 219 mm | 315.3 mm | −96.3 mm |
| Width | 388 mm | 552.2 mm | −164.2 mm |
| Depth | 11 mm | 21 mm | −10 mm |
| Weight | 0.9 kg | 3.6 kg | −2.7 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas Pro 13 better than Kamvas Pro 20?
- Pixel density166 ppi vs 113 ppi+47%
- USB-C video input (one cable)Yes · Kamvas Pro 20: No
- Weight0.91 kg vs 3.6 kg4×
- Report rate220 RPS vs 200 RPS+10%
Why is Kamvas Pro 20 better than Kamvas Pro 13?
- Express keys4 vs 164×
- Active area (surface)485 cm² vs 1,038 cm²2.1×
- Screen size13.3″ vs 19.5″+47%
Specifications
Side by side
| Display | ||
| Screen size | 13.3″ | 19.5″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD | Full HD |
| Pixel density | 166 ppi | 113 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | IPS |
| Brightness (typical) | 220 nits | 220 nits |
| Contrast ratio (static) | 1,000:1 | 1,000:1 |
| Response time | 25 ms | 25 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | Yes |
| Colour | ||
| Colour depth | 8 bit | 8 bit |
| Pen & controls | ||
| Pressure levels | 8,192 | 8,192 |
| Tilt recognition | ±60° | ±60° |
| Active area | 293.8 × 165.2 mm | 434.9 × 238.7 mm |
| Active area width | 294 mm | 435 mm |
| Active area height | 165 mm | 239 mm |
| Active area (surface) | 485 cm² | 1,038 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 220 RPS | 200 RPS |
| Pen accuracy (centre) | ±0.5 mm | ±0.5 mm |
| Battery-free pen | Yes | Yes |
| Pen | PW507 | PW507 |
| Express keys | 4 | 16 |
| Multi-touch | No | No |
| Connectivity | ||
| USB-C video input (one cable) | Yes | No |
| HDMI inputs | — | 1 |
| DisplayPort inputs | — | 1 |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux | Windows, macOS, Linux |
| Design & ergonomics | ||
| Stand | folding stand ST300 20°/45° | adjustable stand 20°~80° |
| Weight | 0.91 kg | 3.6 kg |
| Width | 388 mm | 552 mm |
| Height | 219 mm | 315 mm |
| Depth | 11 mm | 21 mm |
| Product line | Huion Kamvas | Huion Kamvas |
