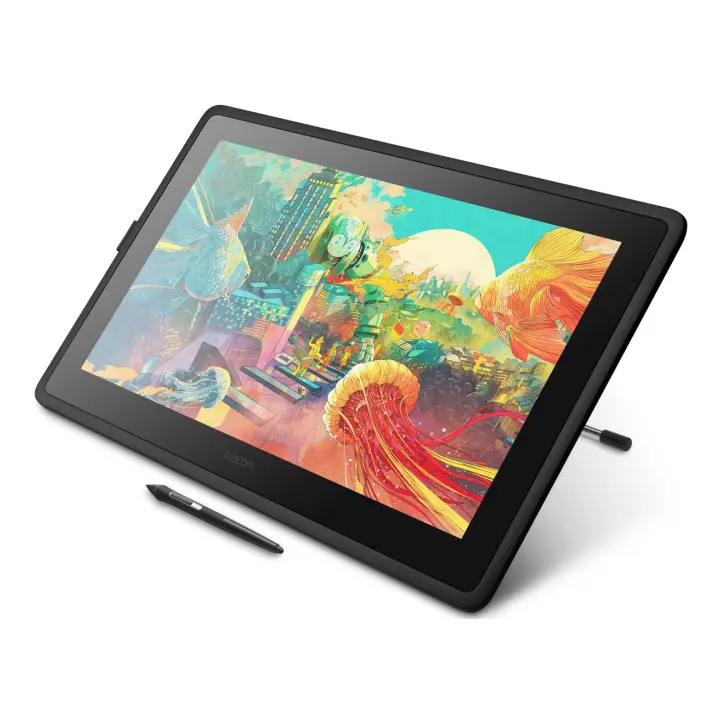

Huion Kamvas Pro 20 vs Wacom Cintiq 22
What Kamvas Pro 20 does better (3) and where Cintiq 22 wins (4) — every spec side by side.
vs
2.6Screen2.2
4.4Pen & controls6.7
3.5Connectivity2.6
4.9Design & ergonomics3.6
Dimensions
Size comparison
Kamvas Pro 20Cintiq 22
| Kamvas Pro 20 | Cintiq 22 | Difference | |
|---|---|---|---|
| Height | 315.3 mm | 359 mm | −43.7 mm |
| Width | 552.2 mm | 570 mm | −17.8 mm |
| Depth | 21 mm | 40 mm | −19 mm |
| Weight | 3.6 kg | 5.6 kg | −2 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas Pro 20 better than Cintiq 22?
- Pixel density113 ppi vs 102 ppi+11%
- Brightness (typical)220 nits vs 210 nits+5%
- Weight3.6 kg vs 5.6 kg+56%
Why is Cintiq 22 better than Kamvas Pro 20?
- Multi-touchNo · Kamvas Pro 20: Yes
- Active area (surface)1,038 cm² vs 1,276 cm²+23%
- Response time25 ms vs 22 ms+14%
- Screen size19.5″ vs 21.5″+10%
Specifications
Side by side
| Display | ||
| Screen size | 19.5″ | 21.5″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD | Full HD |
| Pixel density | 113 ppi | 102 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | — |
| Brightness (typical) | 220 nits | 210 nits |
| Contrast ratio (static) | 1,000:1 | 1,000:1 |
| Response time | 25 ms | 22 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | — |
| Colour | ||
| Colour depth | 8 bit | — |
| Pen & controls | ||
| Pressure levels | 8,192 | 8,192 |
| Tilt recognition | ±60° | ±60° |
| Active area | 434.9 × 238.7 mm | 476 × 268 mm |
| Active area width | 435 mm | 476 mm |
| Active area height | 239 mm | 268 mm |
| Active area (surface) | 1,038 cm² | 1,276 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 200 RPS | — |
| Pen accuracy (centre) | ±0.5 mm | — |
| Battery-free pen | Yes | Yes |
| Pen | PW507 | — |
| Express keys | 16 | — |
| Dials, wheels & touch rings | — | 1 |
| Multi-touch | No | Yes |
| Connectivity | ||
| USB-C video input (one cable) | No | No |
| HDMI inputs | 1 | 1 |
| DisplayPort inputs | 1 | — |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux | Windows, macOS |
| Design & ergonomics | ||
| Stand | adjustable stand 20°~80° | — |
| Weight | 3.6 kg | 5.6 kg |
| Width | 552 mm | 570 mm |
| Height | 315 mm | 359 mm |
| Depth | 21 mm | 40 mm |
| Product line | Huion Kamvas | Wacom Cintiq |
