- Kamvas Pro 16 4K vs Artist Ultra 14

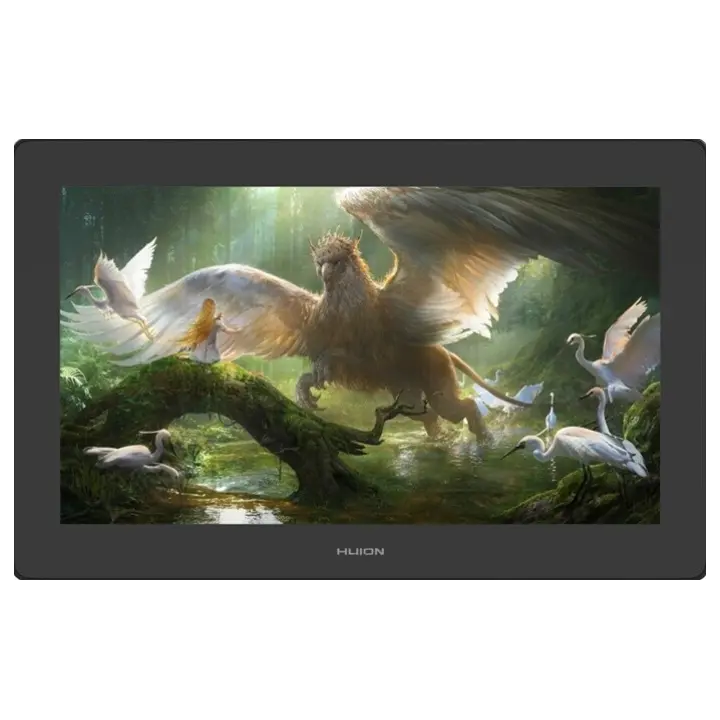

Huion Kamvas Pro 16 4K vs XP-Pen Artist Ultra 14
What Kamvas Pro 16 4K does better (4) and where Artist Ultra 14 wins (8) — every spec side by side.
vs
6.9Screen9.7
5.0Pen & controls8.2
8.1Connectivity8.1
7.2Design & ergonomics9.4
Dimensions
Size comparison
Kamvas Pro 16 4KArtist Ultra 14
| Kamvas Pro 16 4K | Artist Ultra 14 | Difference | |
|---|---|---|---|
| Height | 257.4 mm | 222 mm | +35.4 mm |
| Width | 402.7 mm | 330 mm | +72.7 mm |
| Depth | 13 mm | 6 mm | +7 mm |
| Weight | 1.3 kg | 0.7 kg | +0.6 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas Pro 16 4K better than Artist Ultra 14?
- Pixel density282 ppi vs 243 ppi+16%
- Pen accuracy (centre)±0.3 mm vs ±0.4 mm+33%
- Active area (surface)672 cm² vs 569 cm²+18%
- Screen size15.6″ vs 14″+11%
Why is Artist Ultra 14 better than Kamvas Pro 16 4K?
- Pressure levels8,192 vs 16,3842×
- Brightness (typical)220 nits vs 350 nits+59%
- Contrast ratio (static)1,000:1 vs 100,000:1100×
- Response time25 ms vs 1 ms25×
- Colour depth8 bit vs 10 bit+25%
- Panel typeIPS vs OLED
- Multi-touchNo · Kamvas Pro 16 4K: Yes
- Weight1.27 kg vs 0.72 kg+76%
Specifications
Side by side
| Display | ||
| Screen size | 15.6″ | 14″ |
| Resolution | 3840 × 2160 | 2880 × 1800 |
| Resolution class | 4K UHD | 3K |
| Pixel density | 282 ppi | 243 ppi |
| Aspect ratio | 16:9 | 16:10 |
| Panel type | IPS | OLED |
| Refresh rate | — | 90 Hz |
| Brightness (typical) | 220 nits | 350 nits |
| Contrast ratio (static) | 1,000:1 | 100,000:1 |
| Response time | 25 ms | 1 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | Yes |
| Colour | ||
| sRGB coverage | — | 99% |
| Adobe RGB coverage | — | 99% |
| DCI-P3 coverage | — | 99% |
| Colour depth | 8 bit | 10 bit |
| Pen & controls | ||
| Pressure levels | 8,192 | 16,384 |
| Tilt recognition | ±60° | ±60° |
| Active area | 345.6 × 194.4 mm | 301.8 × 188.6 mm |
| Active area width | 346 mm | 302 mm |
| Active area height | 194 mm | 189 mm |
| Active area (surface) | 672 cm² | 569 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 220 RPS | — |
| Pen accuracy (centre) | ±0.3 mm | ±0.4 mm |
| Battery-free pen | Yes | Yes |
| Pen with eraser | — | Yes |
| Pen | PW517 | — |
| Multi-touch | No | Yes |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux, Android | Windows, macOS, Linux, Android, ChromeOS |
| Design & ergonomics | ||
| Stand | Foldable Stand ST200 20°/45° | — |
| Weight | 1.27 kg | 0.72 kg |
| Width | 403 mm | 330 mm |
| Height | 257 mm | 222 mm |
| Depth | 13 mm | 6 mm |
| Product line | Huion Kamvas | XP-Pen Artist |
