- Kamvas Pro 24 (Gen 3) vs Cintiq Pro 22

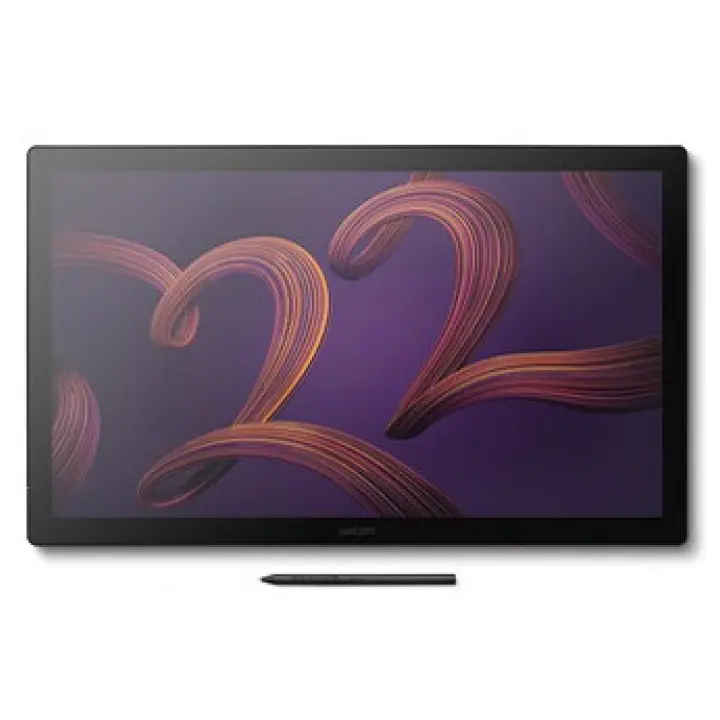

Huion Kamvas Pro 24 (Gen 3) vs Wacom Cintiq Pro 22
What Kamvas Pro 24 (Gen 3) does better (4) and where Cintiq Pro 22 wins (3) — every spec side by side.
vs
7.1Screen9.3
9.5Pen & controls8.1
5.2Connectivity5.2
2.9Design & ergonomics4.1
Dimensions
Size comparison
Kamvas Pro 24 (Gen 3)Cintiq Pro 22
| Kamvas Pro 24 (Gen 3) | Cintiq Pro 22 | Difference | |
|---|---|---|---|
| Height | 364 mm | 312 mm | +52 mm |
| Width | 589.2 mm | 517 mm | +72.2 mm |
| Depth | 22.7 mm | 30 mm | −7.3 mm |
| Weight | 6.4 kg | 5 kg | +1.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas Pro 24 (Gen 3) better than Cintiq Pro 22?
- Pressure levels16,384 vs 8,1922×
- Report rate260 RPS vs 240 RPS+8%
- Active area (surface)1,556 cm² vs 1,276 cm²+22%
- Screen size23.8″ vs 21.5″+11%
Why is Cintiq Pro 22 better than Kamvas Pro 24 (Gen 3)?
- Pixel density185 ppi vs 205 ppi+11%
- Weight6.37 kg vs 5 kg+27%
- Response time14 ms vs 12 ms+17%
Specifications
Side by side
| Display | ||
| Screen size | 23.8″ | 21.5″ |
| Resolution | 3840 × 2160 | 3840 × 2160 |
| Resolution class | 4K UHD | 4K UHD |
| Pixel density | 185 ppi | 205 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | — |
| Refresh rate | 60 Hz | — |
| Brightness (typical) | 250 nits | — |
| Contrast ratio (static) | 1,000:1 | — |
| Response time | 14 ms | 12 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | — |
| Colour | ||
| Colour depth | 10 bit | — |
| Factory calibrated (report) | Yes | — |
| Pen & controls | ||
| Pressure levels | 16,384 | 8,192 |
| Tilt recognition | ±60° | ±60° |
| Active area | 525.9 × 295.8 mm | 476 × 268 mm |
| Active area width | 526 mm | 476 mm |
| Active area height | 296 mm | 268 mm |
| Active area (surface) | 1,556 cm² | 1,276 cm² |
| Pen resolution | 5,080 lpi | — |
| Report rate | 260 RPS | 240 RPS |
| Pen accuracy (centre) | ±0.3 mm | — |
| Battery-free pen | Yes | Yes |
| Pen with eraser | Yes | — |
| Pen | PW600/PW600S (PenTech 4.0) | — |
| Express keys | — | 8 |
| Multi-touch | Yes | Yes |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| HDMI inputs | 1 | 1 |
| DisplayPort inputs | 1 | 1 |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Linux, Android | — |
| Design & ergonomics | ||
| Stand | 20° Integrated Stand | — |
| Weight | 6.37 kg | 5 kg |
| Width | 589 mm | 517 mm |
| Height | 364 mm | 312 mm |
| Depth | 23 mm | 30 mm |
| Product line | Huion Kamvas | Wacom Cintiq Pro |
