- Kamvas RDS-160 vs Artist 22 Plus

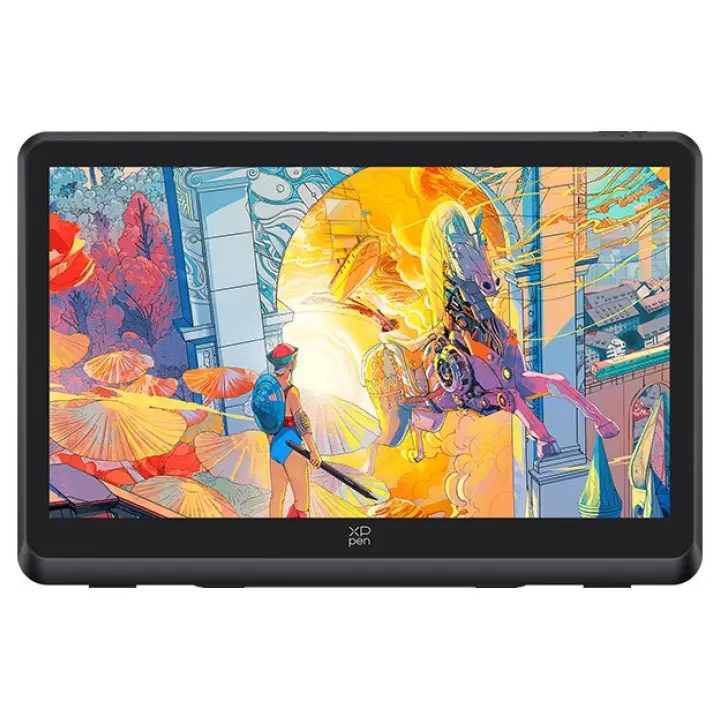

Huion Kamvas RDS-160 vs XP-Pen Artist 22 Plus
What Kamvas RDS-160 does better (3) and where Artist 22 Plus wins (5) — every spec side by side.
vs
3.0Screen4.3
6.3Pen & controls5.6
5.9Connectivity5.9
Dimensions
Size comparison
Kamvas RDS-160Artist 22 Plus
| Kamvas RDS-160 | Artist 22 Plus | Difference | |
|---|---|---|---|
| Height | 253 mm | 365 mm | −112 mm |
| Width | 423.5 mm | 547 mm | −123.5 mm |
| Depth | 12 mm | 33.4 mm | −21.4 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas RDS-160 better than Artist 22 Plus?
- Pixel density142 ppi vs 102 ppi+39%
- Report rate220 RPS vs 200 RPS+10%
- Pen accuracy (centre)±0.3 mm vs ±0.4 mm+33%
Why is Artist 22 Plus better than Kamvas RDS-160?
- Pressure levels8,192 vs 16,3842×
- Active area (surface)666 cm² vs 1,275 cm²+91%
- Brightness (typical)220 nits vs 250 nits+14%
- Response time25 ms vs 14 ms+79%
- Screen size15.5″ vs 21.5″+39%
Specifications
Side by side
| Display | ||
| Screen size | 15.5″ | 21.5″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD | Full HD |
| Pixel density | 142 ppi | 102 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | — |
| Brightness (typical) | 220 nits | 250 nits |
| Contrast ratio (static) | 1,000:1 | 1,000:1 |
| Response time | 25 ms | 14 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | Yes |
| Colour | ||
| sRGB coverage | — | 99% |
| Adobe RGB coverage | — | 91% |
| Colour depth | 8 bit | 8 bit |
| Pen & controls | ||
| Pressure levels | 8,192 | 16,384 |
| Tilt recognition | ±60° | ±60° |
| Active area | 344.2 × 193.6 mm | 476.1 × 267.8 mm |
| Active area width | 344 mm | 476 mm |
| Active area height | 194 mm | 268 mm |
| Active area (surface) | 666 cm² | 1,275 cm² |
| Pen resolution | 5,080 lpi | 5,080 lpi |
| Report rate | 220 RPS | 200 RPS |
| Pen accuracy (centre) | ±0.3 mm | ±0.4 mm |
| Battery-free pen | Yes | Yes |
| Pen | PW517 | X3 Pro Smart Chip Stylus |
| Express keys | 10 | — |
| Multi-touch | No | No |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| HDMI inputs | 1 | 1 |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Android | Windows, macOS, Linux, Android, ChromeOS |
| Design & ergonomics | ||
| Stand | Foldable Stand ST300 20°/45° | — |
| Weight | 1.26 kg | — |
| Width | 424 mm | 547 mm |
| Height | 253 mm | 365 mm |
| Depth | 12 mm | 33 mm |
| Product line | Huion Kamvas | XP-Pen Artist |
