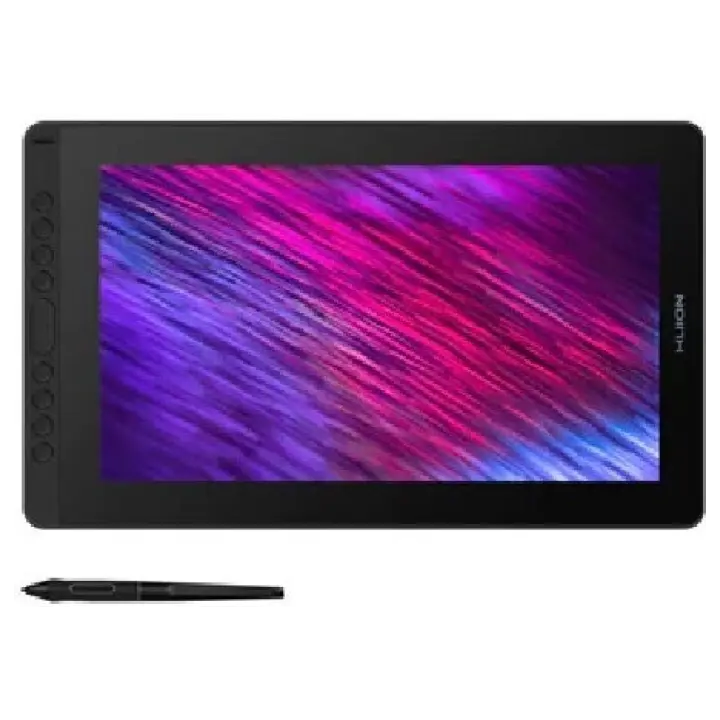

Huion Kamvas RDS-160 vs Wacom One 13 Touch
What Kamvas RDS-160 does better (5) and where One 13 Touch wins (7) — every spec side by side.
vs
3.2Screen7.4
6.3Pen & controls2.2
6.2Connectivity6.2
7.4Design & ergonomics8.5
Dimensions
Size comparison
Kamvas RDS-160One 13 Touch
| Kamvas RDS-160 | One 13 Touch | Difference | |
|---|---|---|---|
| Height | 253 mm | 222 mm | +31 mm |
| Width | 423.5 mm | 336 mm | +87.5 mm |
| Depth | 12 mm | 12 mm | = |
| Weight | 1.3 kg | 0.9 kg | +0.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Kamvas RDS-160 better than One 13 Touch?
- Express keys10 vs 25×
- Pressure levels8,192 vs 4,0962×
- Pen resolution5,080 lpi vs 2,540 lpi2×
- Active area (surface)666 cm² vs 426 cm²+56%
- Screen size15.5″ vs 12.9″+20%
Why is One 13 Touch better than Kamvas RDS-160?
- Pixel density142 ppi vs 166 ppi+17%
- Brightness (typical)220 nits vs 320 nits+45%
- Pen accuracy (centre)±0.3 mm vs ±0.01 mm30×
- Contrast ratio (static)1,000:1 vs 2,000:12×
- Multi-touchNo · Kamvas RDS-160: Yes
- Weight1.26 kg vs 0.9 kg+40%
- Response time25 ms vs 19 ms+32%
Specifications
Side by side
| Display | ||
| Screen size | 15.5″ | 12.9″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD | Full HD |
| Pixel density | 142 ppi | 166 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Panel type | IPS | IPS |
| Brightness (typical) | 220 nits | 320 nits |
| Contrast ratio (static) | 1,000:1 | 2,000:1 |
| Response time | 25 ms | 19 ms |
| Anti-glare / matte screen | Yes | Yes |
| Fully laminated screen | Yes | — |
| Colour | ||
| Colour depth | 8 bit | — |
| Pen & controls | ||
| Pressure levels | 8,192 | 4,096 |
| Tilt recognition | ±60° | ±60° |
| Active area | 344.2 × 193.6 mm | 294 × 145 mm |
| Active area width | 344 mm | 294 mm |
| Active area height | 194 mm | 145 mm |
| Active area (surface) | 666 cm² | 426 cm² |
| Pen resolution | 5,080 lpi | 2,540 lpi |
| Report rate | 220 RPS | — |
| Pen accuracy (centre) | ±0.3 mm | ±0.01 mm |
| Battery-free pen | Yes | Yes |
| Pen | PW517 | — |
| Express keys | 10 | 2 |
| Multi-touch | No | Yes |
| Connectivity | ||
| USB-C video input (one cable) | Yes | Yes |
| HDMI inputs | 1 | 1 |
| Wireless connection | No | No |
| Compatibility | Windows, macOS, Android | Windows, Android, ChromeOS |
| Design & ergonomics | ||
| Stand | Foldable Stand ST300 20°/45° | — |
| Weight | 1.26 kg | 0.9 kg |
| Width | 424 mm | 336 mm |
| Height | 253 mm | 222 mm |
| Depth | 12 mm | 12 mm |
| Product line | Huion Kamvas | Wacom One |
